Explore the MX-21S Metal Wire Drawing Machine by Times MinXin, featuring 4-tower wheel linkage control for economical and practical operation. This advanced machine supports servo control, spray cooling, and unique water tank heating functions to ensure high-quality ultra-fine wire processing. Ideal for materials like gold, silver, copper, and stainless steel, with wire diameters as fine as 50 μm. Full computer control allows centralized monitoring, making it a perfect choice for intelligent chemical plants.
Features:
1. Adopt 4 tower wheel linkage control, which is economical and practical1、
2. Servo control is adopted for take-up and layout
3. 21 mode operation
4. Spray cooling wire drawing
5. Outlet design water and bubble cleaning, wind drying technology
6. Free setting out with damping rod

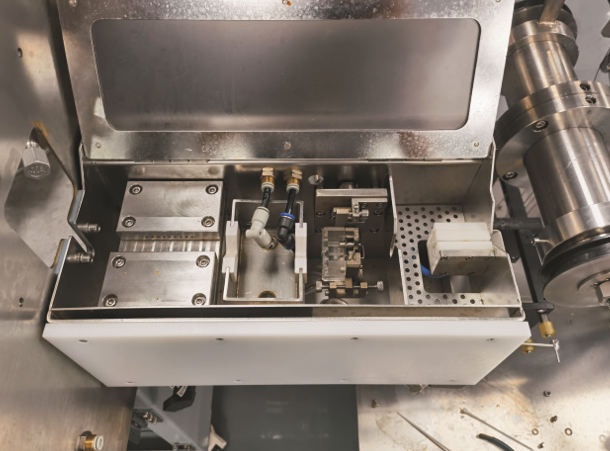

7. Pull wire and clean the independent water tank to prevent wire sticking
8. Unique water tank heating function
9. Constant tension control technology is used to ensure the synchronization of take-up and stay wire
10. The space between the wires can be adjusted to realize horizontal and ball arrangement
11. Full computer control, which can realize the central monitoring of intelligent chemical plant
12. 100 groups of working mode, data storage, convenient and intuitive
Machine specification:
model: MX-21S
Power Supply: Three phase 380V 200V 50hz/60hz
Applicable materials: Gold,silver, coppers, stainless steel and other ultra-fine metal wires
Finished wire diameter: 100-50 μm
Wire extension speed: Max 600m/min
Tension Range: 0.5 ~ 20g
Wire eye modulus: 21
Storage procedure: 100 groups

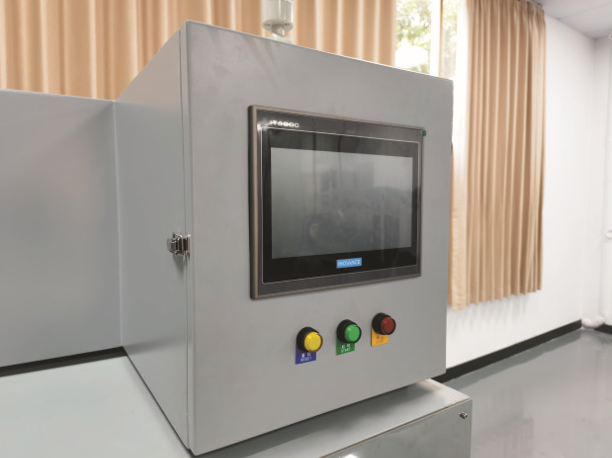

Control mode: Human machine Interface PLC soft program control
Control logic: Optimal control
Start stop mode: Soft start/stop, adjustable start/stop lifting speed
Meter counting method: Setting out/outgoing line meter, real-time display of actual setting out/outgoing line length
