Features:

1.two lines independently control the take-up and take-off lineand operate independently

2.Intelligent calculus tension control.accurate Angle compensation calculation

3.Immersion type manuallifting immersion spool, which riseswhen starting andautomaticallydrops and stops when stopping

4.File line blowing knife dry, heat drying can set the temperatureand constant temperature function

5.Soft start control is adopted for both receiving and setting out

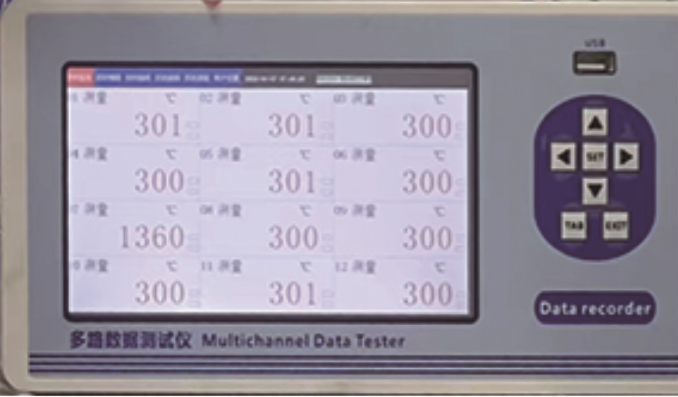

6.Each temperature is calculated automatically by at, and sectional temperature compensation can be set,with temperature difference of 1'C, Four independent temperature control is accurate

7.The length adopts laser meter counting function, which is accurate,Presetlength of shutdown

8.Equipped with wireless shutdown, automatic shutdown and disconnectionalarm function after finishing the line

9.Row line can be set spacing,flat row, cone row and other ways

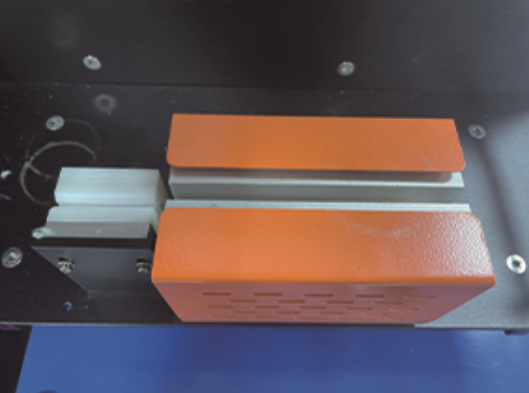

10.Unique heating design, the temperature is the most accurate, the heat field is more uniform, 1m ultra-longheating zone higher efficiency

11.Using advanced and expensive mass flow controller, the gas output isalways stable during operation, andthe qualityis consistent.ltis controlled by computer preset software

12.Servo system are selected domestic famous brand, stable and reliable.

13.One hundred menu memory function, can store different process parameters

14.Constant linear speed operation mode, consistent elongation

Machine specification:

Annealing temperature Max:800C

Annealing speed: 0~150 m/min

Tension range: 0.5~20g

Annealed wire diameter: 0.010~0.050mm

Spool diameter: 80mm-100mm(可設(shè))

Cable swing: 70mm(可設(shè))

Number of stator monitoring points. 4點(diǎn)(左4)(右4)

Total power: 15KW

Total power supply: 380V,50HZ
